Technical Specifications:

• Model: SBA 3-45 A
• Maximum Flow Rate: Up to 2.83 m³/h
• Starting Pressure: 2.2 bar
• Total Head Range: 30 to 45 meters
• Fluid Type: Clean water
• Fluid Temperature Range: 0 to 40 °C
• Optimal Fluid Temperature: 20 °C
• Fluid Density: 998.2 kg/m³
• Fluid pH Range: 4 to 9
• Shaft Material: Stainless steel
• Mechanical Power (P2): 1 HP (0.75 kW)
• Maximum Installation Depth: 10 meters
• Power Input (P1): 0.9 kW
• Operating Frequency: 60 Hz
• Rated Voltage: 220-230 V (single phase)
• Starting Current: 12 A
• Rated Speed: 3400 RPM
• Starting Capacitor: 12 μF / 450 V
• Protection Class: IP68 (fully submersible)
• Insulation Class: F
• Built-in Motor Protection: Yes
• Cable Length: 15 meters
• Cable Type: H07RN-F 3G1 (no plug included)

Key Features:

• Submersible Design: Ideal for installation inside water tanks or wells.
• Premium Quality: Constructed from corrosion-resistant technopolymer with a stainless steel shaft and filter, ensuring long-term durability.
• Energy Efficient: Low power consumption for cost-effective operation.
• Easy Installation: Simple and fast setup for residential use.
• Check Valve Included: Comes with a free non-return valve to prevent backflow.
• Long Power Cable: Equipped with a 15-meter durable cable for flexible installation.
• Integrated Multi-Stage Pump: Provides smooth, high-pressure water flow for domestic water supply applications.
• Built-in Control Unit: Eliminates the need for external controllers, simplifying operation and maintenance.

Advanced Dry-Run Protection with Electric Float Switch

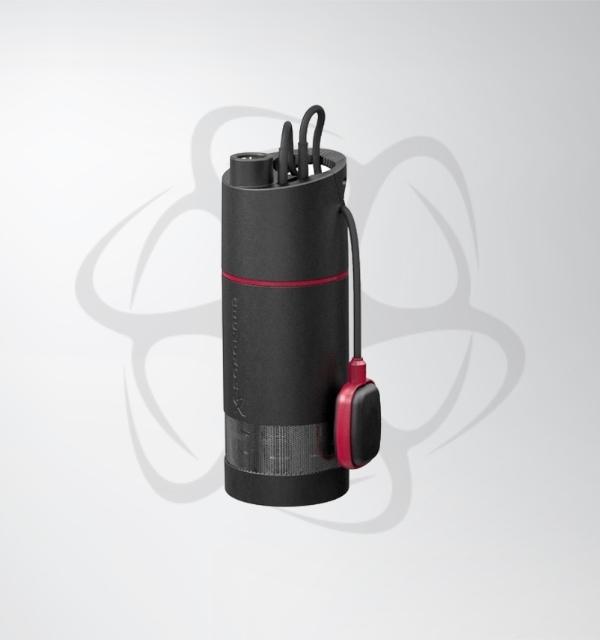

This Grundfos submersible pump features a smart electric float switch system that enhances operational safety. The float activates at a preset water level, automatically stopping the pump when water falls below this threshold, thus preventing dry running which can damage the pump. This system maintains a safe water level and prolongs pump life by protecting it against harmful dry operation.

High Performance and Powerful Operation

Operating at a high speed of 3400 RPM, the pump delivers a large volume of water efficiently and quickly. Its robust motor and advanced design guarantee outstanding pumping performance, making it perfect for lifting water to high elevations or over long distances in residential settings.

Trust Advanced Pumps for reliable, high-quality water solutions.
