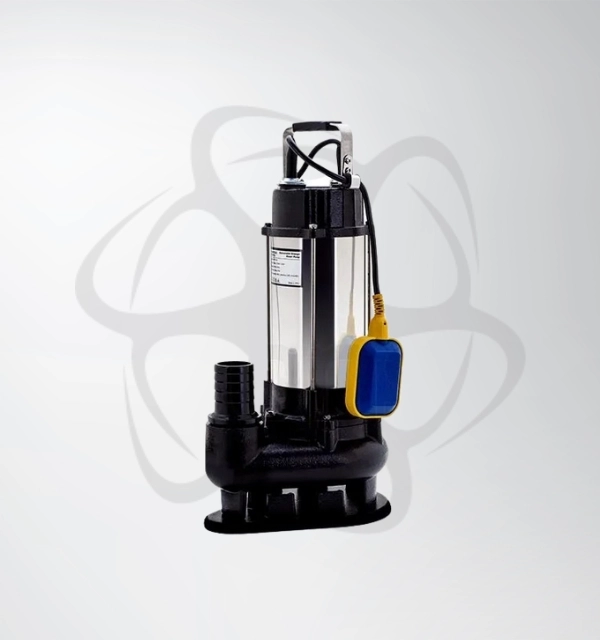

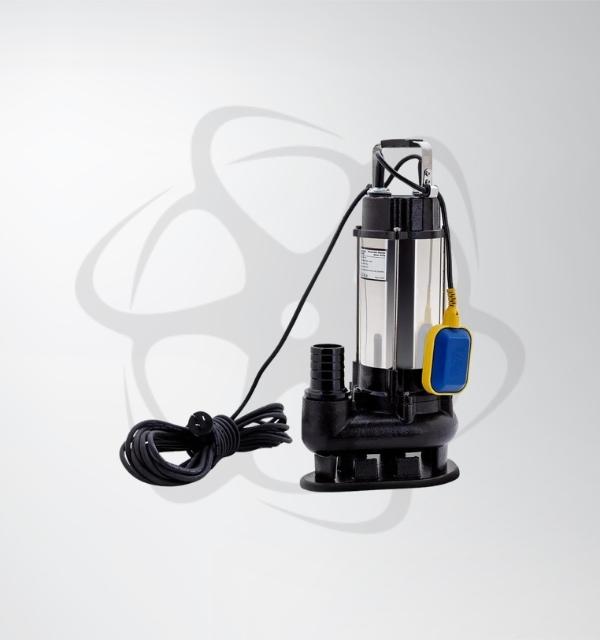

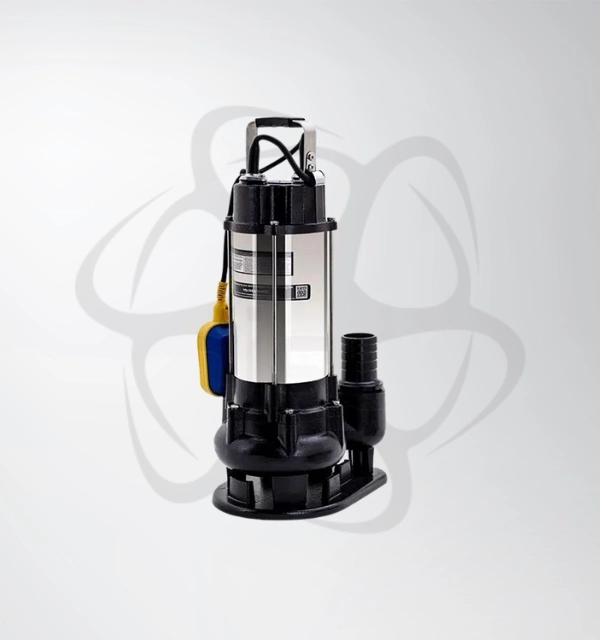

Technical Specifications for 2 HP Submersible Sewage Pump

• Brand: Morex
• Model: V1500F
• Motor Power: 2 HP (1.5 kW)
• Voltage: 220 V
• Frequency: 60 Hz
• Rated Current: 8.9 A
• Maximum Flow (Qmax): 400 L/min (24,000 L/h)
• Maximum Head (Hmax): 19 m
• Minimum Head (Hmin): 6 m
• Maximum Liquid Temperature (Tmax): 40 °C
• Maximum Submersion Depth: 32 m
• Inlet/Outlet Size: 2 inches
• Construction Materials: Cast iron impeller, stainless-steel casing, high-grade hardware

Key Features

1. Heavy-Duty Construction
   Cast-iron impeller and stainless-steel body withstand corrosive sewage environments and mechanical wear.
2. Automatic Float Switch
   Built-in float switch starts and stops the pump based on liquid level—no manual intervention required.
3. High Flow Capacity
   Capable of handling up to 400 L/min (24 m³/h), moving 28,800 L per hour in peak operation.
4. Deep Submersion Capability
   Designed to operate at depths up to 32 m without leakage, thanks to robust waterproof seals.
5. Versatile Installation
   Suitable for domestic, commercial, and light industrial sewage disposal, basement drainage, and flood control.

Automatic Float Switch Operation

The integrated float switch ensures reliable “plug-and-play” operation:

• Auto-Start at preset high-water level
• Auto-Stop once the level drops below the cutoff
• Dry-Run Protection by preventing operation without liquid

This delivers worry-free, hands-off control of your sewage discharge system.

High-Performance Pumping

With a maximum discharge capacity of 28,800 L/hour and head up to 19 m, the V1500F excels at:

• Rapid basement or pit dewatering
• Sewage transfer in treatment stations
• Emergency flood relief

Its robust 2 HP motor and high-efficiency impeller deliver consistent, clog-resistant performance.
