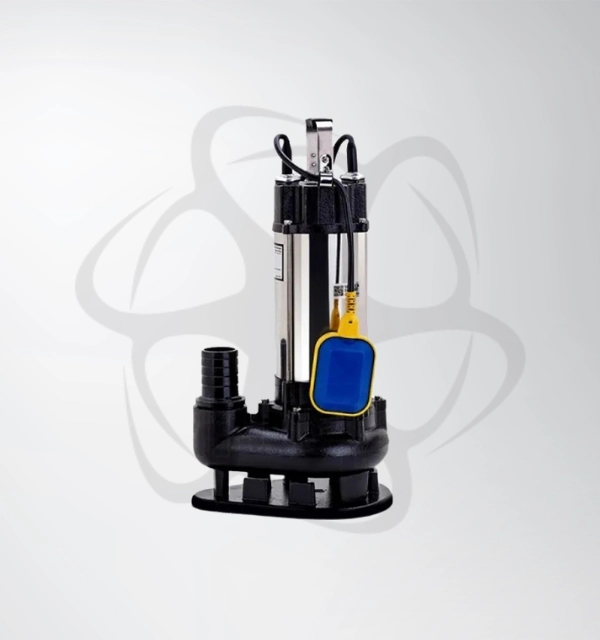

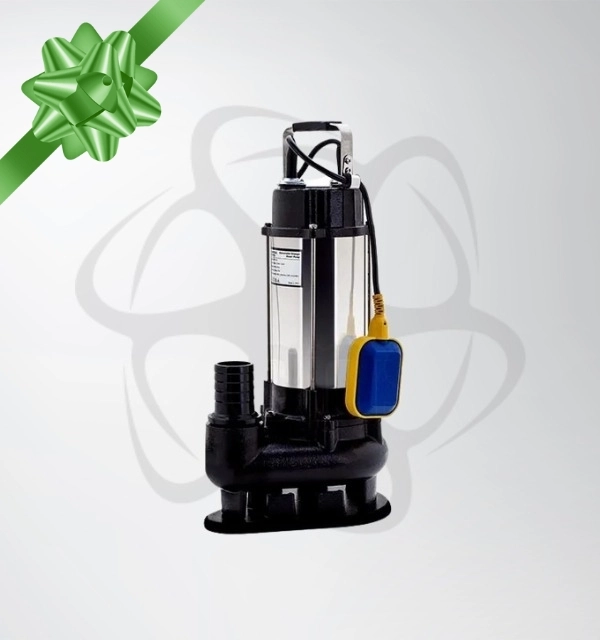

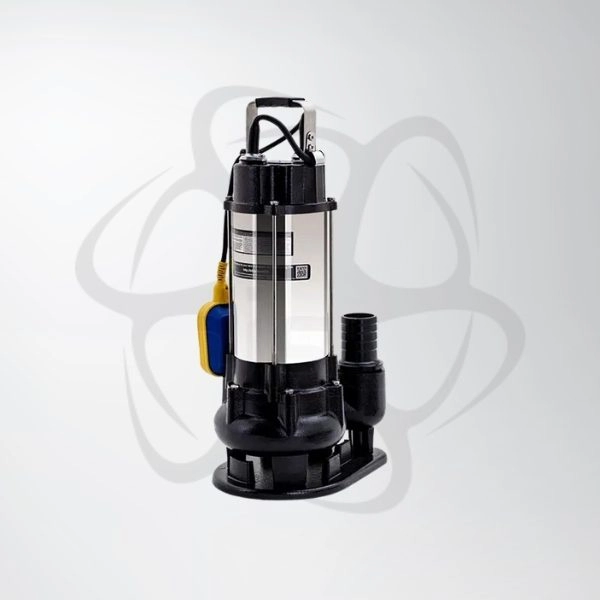

Technical Specifications for 1 HP Submersible Sewage Pump

• Model: V1500F
• Brand: Morex
• Power: 1 HP (0.75 kW)
• Voltage: 220 V, 60 Hz
• Current Draw: 8.9 A
• Maximum Flow (Q_max): 583 L/min (35 m³/h)
• Minimum Submersion Depth (H_min): 0.6 m
• Maximum Head (H_max): 19 m
• Max. Liquid Temperature: 40 °C
• Outlet & Inlet Port: 2 “
• Construction Materials:
  • Pump Body & Impeller: Ductile cast iron
  • Motor Housing: Stainless steel
• Sealing: IP68 fully submersible

Key Features & Benefits

1. Heavy-Duty Sewage Handling
   • Specially engineered to pass solids and handle corrosive sewage safely, protecting against bacterial and viral contamination.
2. Durable Construction
   • Ductile iron impeller and stainless-steel housing for maximum resistance to abrasion and corrosion, ensuring a long service life.
3. High-Performance Motor
   • 2,250 W motor delivering powerful, consistent flow up to 35 m³/h and head up to 19 m.
4. Automatic Float Switch
   • Integrated float switch for automatic on/off operation—no external control panel required.
5. Deep Submersion Capability
   • Rated for continuous operation at depths up to 32 m while maintaining IP68 sealing.
6. Easy Installation & Maintenance
   • Standard 2 ” connections simplify piping; removable strainer prevents clogging and allows quick cleaning.
7. Wide Applications
   • Ideal for residential and commercial wastewater pits, stormwater sumps, and light industrial effluent.

Elevate your sewage-handling system with the Morex V1500F—combining robust cast-iron construction, high flow performance, and fully automatic operation for a reliable, maintenance-friendly solution.
