Specifications:

• Fluid Type: Clean municipal water or potable water
• Total Head (Lift): 15 to 45 meters
• Flow Rate (Qmax): 10 to 60 liters per minute
• Fluid Temperature Range: 4 to 45 °C
• Shaft Material: Stainless steel
• Inlet/Outlet Size: 1 inch
• Pressure Rating: Up to 10 bar
• Power (P2): 0.75 HP (¾ HP)
• Frequency: 50/60 Hz
• Voltage: 220 V
• Current: 2.8 A
• Motor Protection Rating: IPX4D
• Power Supply: Wired electric connection
• Pump Type: Surface pump
• Pump Body & Fan Material: Norly
• Ambient Temperature Range: Up to 45 °C
• Certifications: CE, ASNZ4020
• Motor Insulation Class: F

Key Features:

• Fully Automatic Operation: Starts and stops automatically with faucet use—no additional controllers needed. Ideal to install after an overhead tank for optimal pressure control.
• Stable Pressure Delivery: Maintains constant water pressure even when up to 8 faucets are used simultaneously.
• Easy Pressure Adjustment: Set pressure anywhere between 1.5 to 4.5 bar with a single button.
• Self-Priming Pump: No need for manual refilling or air bleeding, saving you hassle.
• Built-in Suction System: Eliminates the need for an external suction pipe which is prone to damage, as the pump includes an internal suction valve.
• Dry-Run Protection: Automatically stops to protect itself if it runs without water.
• Ultra-Quiet Operation: Noise level as low as 47 dB for a peaceful home environment.

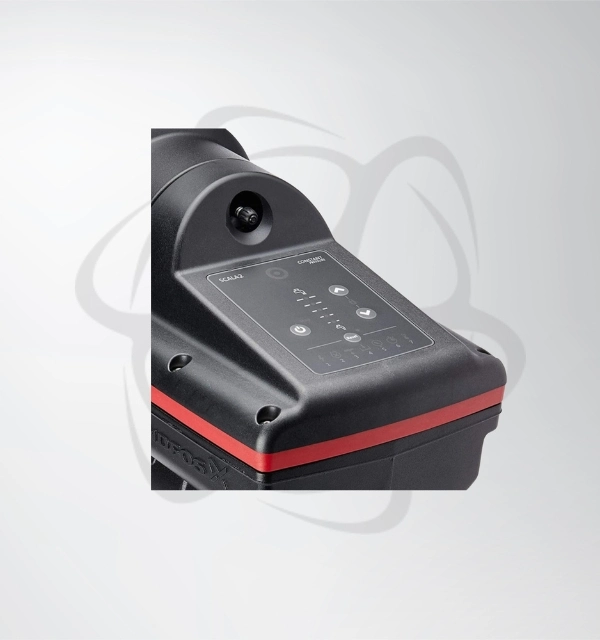

• Smart Diagnostics: Detects faults, displays error codes on the control panel, and automatically shuts off if running continuously for over 30 minutes (e.g., faucet left open).
• Variable Speed Technology: Unlike fixed-speed pumps that always run at max speed, the Scala 2 adjusts speed according to demand, maximizing electricity savings.
• High Motor Efficiency: Features IE5 class motor—the world’s highest efficiency rating—reducing power consumption significantly.
• Dual Frequency Compatibility: Supports 50/60 Hz, suitable for Gulf and Middle Eastern countries.
• Ideal for Villas: Recommended for installation above a ground-level tank, supporting up to 3 floors.

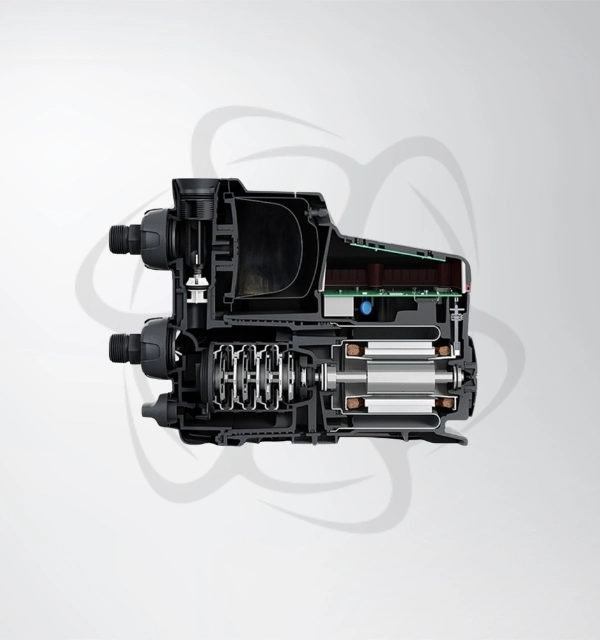

Upgrade your water supply system with the Scala 2 Smart Water Pump, designed for reliability, energy efficiency, and intelligent operation.
